Our Workings



MECHANICAL MACHINING

BRIDGEPORTH GX 600
Nr. 1  pallet
Surface pallet 600 x 500 mm
X axes 600 mm
Y axes 540 mm
Z axes 510 mm
Spindle bore12.000 g/min
Spindle power 13 Kw
20 positions tools
Shank type BT40
NC unit FANUC 18i-MB

BRIDGEPORTH XR 700 APC
Nr. 2  pallets - changing rotation
Surface pallet 800x 500 mm
Loading capacity Kg. 250 per pallet
X axes 700 mm
Y axes 500 mm
Z axes 560 mm
Spindle bore 15.000 g/min
Spindle power 25 Kw
48 positions tools
Shank type ISO 40
NC unit HEIDENHAIN ITNC 530


Some examples of items realized with our equipments.

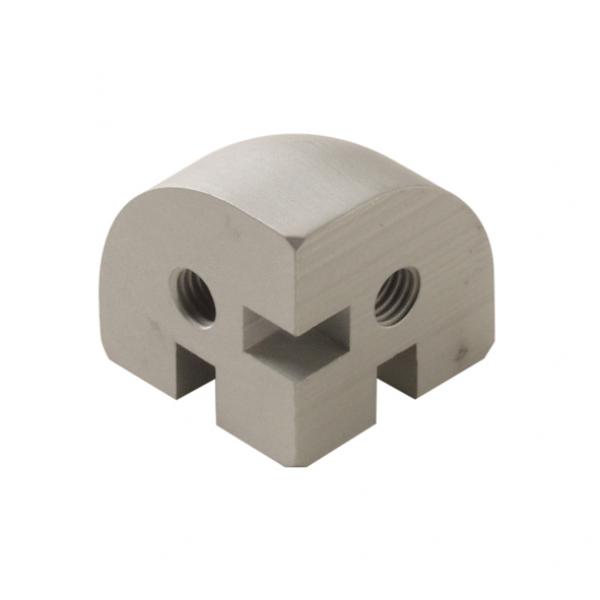

ALU EN AW-6060
1.550 gr. 80 x 140 x 140 mm

ALU EN AW-6060
1.208 gr. 50 x 40 x 100 mm

ALU EN AW-6082
98 gr. 40 x 56 x 40 mm

EN AW-6082
22 gr - 20 x 15 x 54 mm

ALL. LEGA 6060
238 gr. 40 x 100 x 100 mm

ALL. LEGA 6060
272 gr. 80 x 50 x 80 mm

PVC GREY
gr. 76 120 x 115 x 8 mm

PTFE - TEFLON
10 gr - 70 x 39,5 x 6 mm

NYLON PA66
gr. 147 87 x 55 x 36 mm

S355JR-Fe510B
1.027 gr. 40 x 60 x 80 mm

42CrMo4
150 gr. Ø 41 x 68 mm

AISI 316
2.112 gr. 40 x 45 x 220 mm

CW614N - CuZn39Pb3
190 gr. 10 x 50 x 50 mm

CW614N - CuZn39Pb3
grammi 100

OTTONE
116 gr. Ø 20X2,5 - 70 x 70 mm

OTTONE
202 gr. Ø 20X2,5 - 130 x 70 mm

BRONZE
181 gr - 68 x 68 x 13 mm
